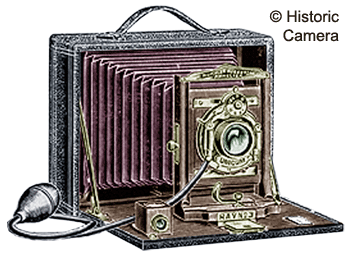

Ray No. 3 Camera

Manufacture: Ray Camera Company
Location: Rochester, N.Y.
Model: No.3 Tourist or Cycle Camera

Production Dates: c1899
Film: Plate

Description: This style comprises all the specifications of the preceding one, with the addition of several new features and attachments demanded
by more experienced amateurs.

The rack and pinion focusing attachment makes it very desirable for fine focusing, also the sliding front movement will be found convenient in making vertical pictures. The detachable lens board is an especially handy arrangement, whereby the shutter and lens can be removed and a wide angle or any other lens inserted in an instant, thus doing away with unscrewing the shutter, whereby the fine mechanism is often injured, and the annoyance caused by different sized lens flanges is avoided. Extra duplicate lens boards can be secured at any time and fitted to any lens it is desirable to use in the camera.

The 4 x 5 weighs 30 ounces and measures 2 1/4 x 5 1/4 x 6
The 5 x 7 weighs 3 1/4 pounds and measures 2 3/8 x 6 1/4 x 8 1/4

Reference Price for: 1900

4 x 5
5 x 7
1Unicom shutter, R. R. lens
Extra lens boards fitted
Ray double plate holders, extra

Wide angle lens

Daylight loading roll holders
